Arc Flash Analysis

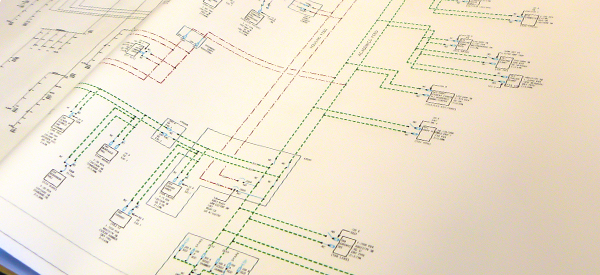

As part of our extensive modeling capabilities, Dunham can perform an integrated analysis of a building’s electrical distribution system—ultimately resulting in the safest possible power systems for your building.

Analysis Features:

  • Voltage drop
  • Short circuit calculations
  • Overcurrent coordination
  • Evaluation of arc flash potential throughout the system


  • Knowledge of the appropriate level of protective gear required when working on specific components of the electrical system.
  • Validates and documents current facility electrical system conditions, as well as addressing code concerns.
  • Ensures your electrical system is safe and circuit interrupters are correct or noted for replacement.
